Premium Thunderbolt™ 4 Docking Experience: ThinkPad Thunderbolt 4 Workstation Dock delivers reliable and consistent industry leading video, data and power connectivity; Maximise Your Productivity: Expand your horizon with versatile 8K display support or multiple 4K display support, up to 230 W Power Delivery to Workstation, silent firmware upgrades, VPro/AMT support and transfer data at lightning fast 40 Gbps.; The ThinkPad Thunderbolt 4 Workstation Dock is future-proof and fully loaded to take your productivity, efficiency and creativity to the peak.
The ThinkPad Thunderbolt™ 4 Workstation Dock supports up to 230 W PD
silent firmware upgrades, vPro/AMT Pass through support, and
data transfer rates up to 40 Gbps
Tech Specs
Color
Black/Red
Max Number of External Monitors
4
Weight
0.45 Kg
Refresh Rate
1* 8K 30Hz Via HDMI 2.1 4*4K 60 Hz
AC Plug
Slim Tip
Hardware Requirements
Host with USB-C/Thunderbolt port
Warranty Type
Customer Replaceable Unit (CRU)
Output Power
230W
Brand
ThinkPad
OS Requirements
Win10 64 bit, Win11 64 bit
Packed Weight
1.9 Kg
Agency Approvals
CE-EMC, TUV Mark, COC, CB
Audio Ports
1x 3.5 mm Audio combo Jack
Charging Port
DC-IN
Thunderbolt Port

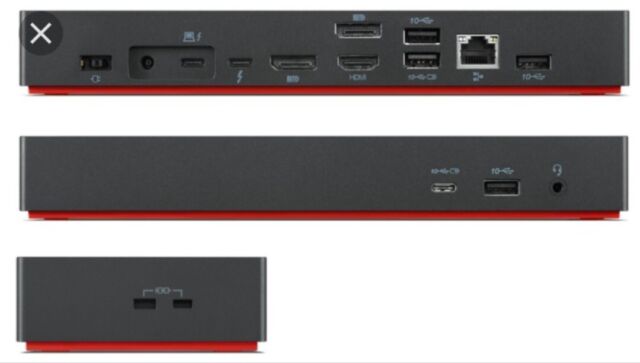

1x Thunderbolt Port - for Host connect; 1x Thunderbolt Port - for Device connect
USB Ports
4* USB-A 1*USB-C
Video Ports
1x HDMI 2.1; 2x DP 1.4
Ethernet
Gigabit Ethernet
Package Type
Brown box
Packed Dimensions (L x D x H)
270mm x 195mm x 85mm
Height
30 mm (1.18 in)
Cable Length
220 mm
Depth
80 mm (3.14 in)
Warranty Period
3 Year
Maximum Operating Temperature
40°C
Minimum Operating Temperature
0°C
Maximum Relative Humidity (%)
95%
Minimum Relative Humidity (%)
5%
Driver Needed
Yes
Included Accessory

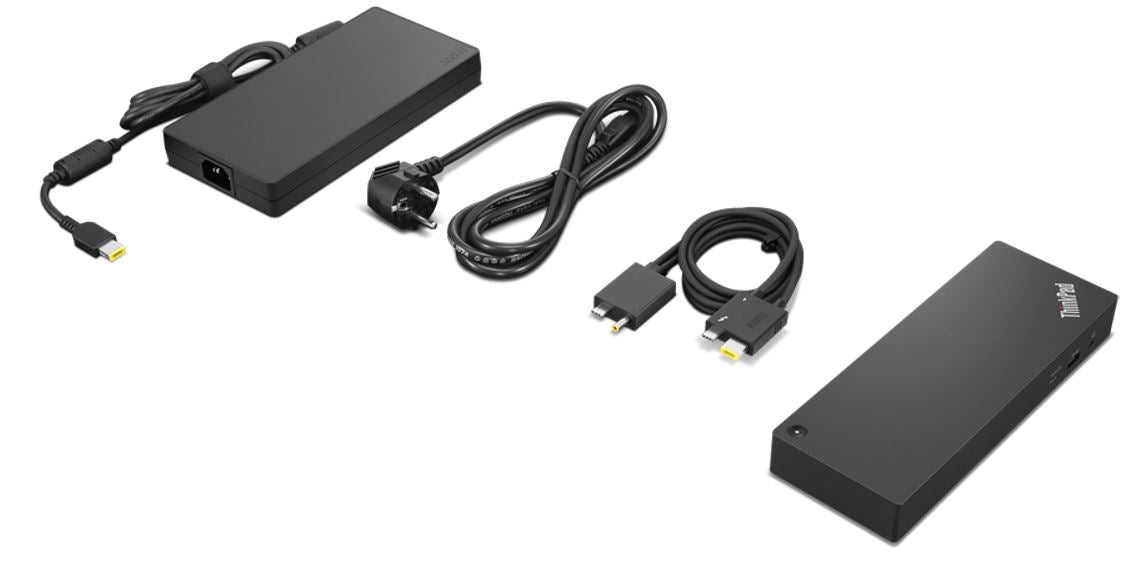

300W adapter, 1x power cord, 0.7 m Thunderbolt 4 Split Cable
