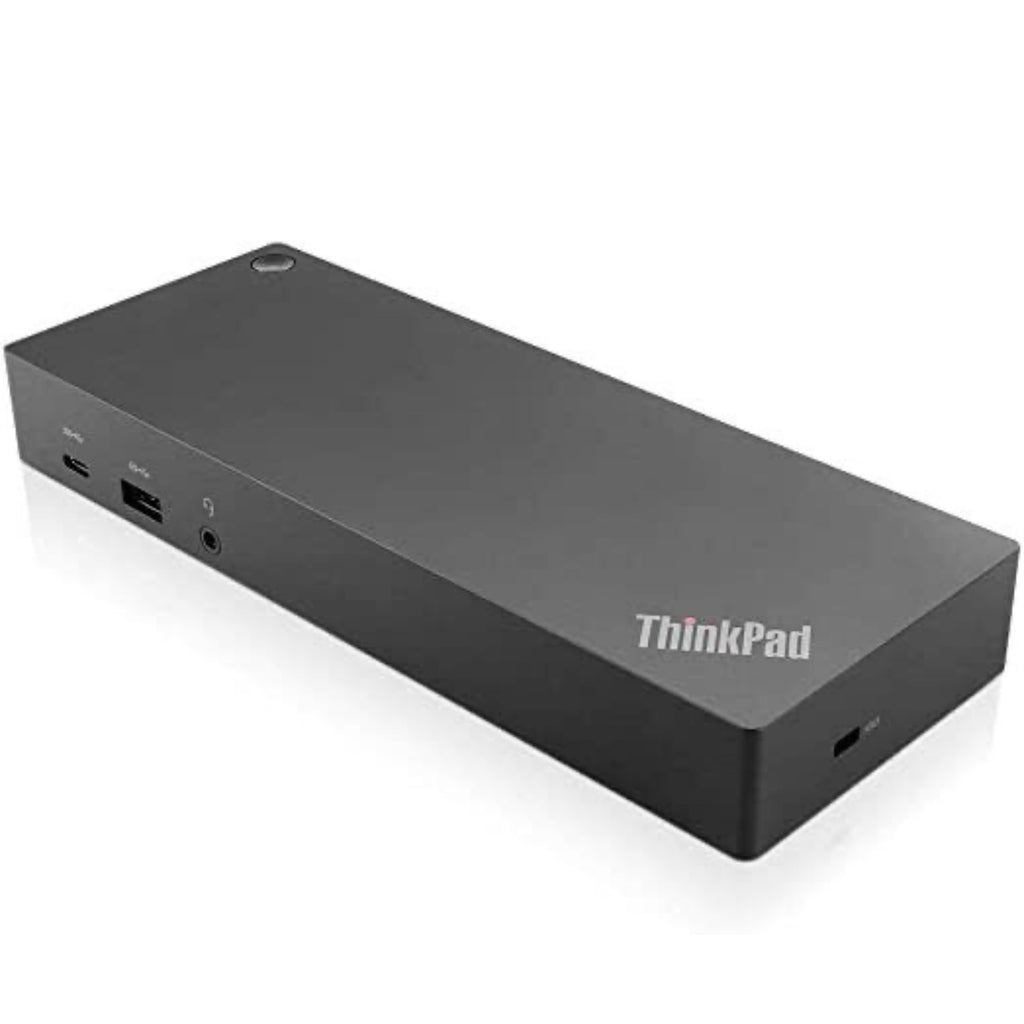

- The ThinkPad Hybrid USB-C with USB-A Dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments.
- It features enterprise-class manageability like PXE boot and MAC address pass-through.
- The ThinkPad Hybrid USB-C with USB-A Dock offers three high-speed USB 3.1 ports, up to dual UHD 4K resolution and rapid charging on ThinkPad notebooks.

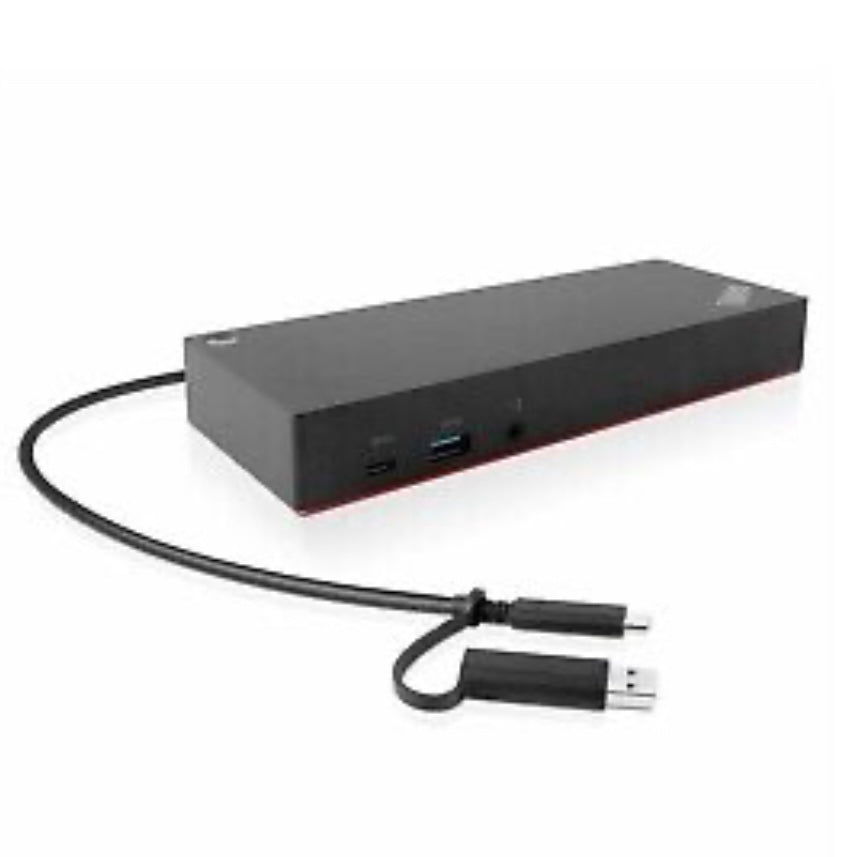

- With the included USB-C to USB-A adaptor, it can also provide port replication to non-Lenovo or non-USB-C notebooks.
Tech Specs
| Color |
Black |
| Max Number of External Monitors |
2 |
| Weight |
480 g (1.05 lbs) |
| Refresh Rate |
DisplayPort: 3840 x 2160 @ 60 Hz; HDMI: 3840 x 2160 @ 60 Hz; Bundle DisplayPort 1 & DisplayPort 2 to the monitor: 5120 x 2880 @ 60 Hz;; "Maximum resolution" refers to what can be supported by the dock. Actual resolution will vary by laptop. |
| AC Plug |
UK Standard Plug Type G |
| Hardware Requirements |
Machine with full function USB-C port or USB 3.0 Port |
| Warranty Type |
CRU |
| Output Power |
90 W |
| Brand |
ThinkPad |
| OS Requirements |
Windows 11, Windows 10, Windows 7 |
| Agency Approvals |
BSMI, CB, CE, cULus, EAC, FCC/ICES, Israel SII, KCC, LoA, NOM, RCM, Serbia Kvalitet, TUV Mark, Ukraine DoC, VCCI |
| Audio Ports |
1 x 3.5 mm Stereo/Mic Combo Port |
| Charging Port |
ThinkPad Slim-tip Port |

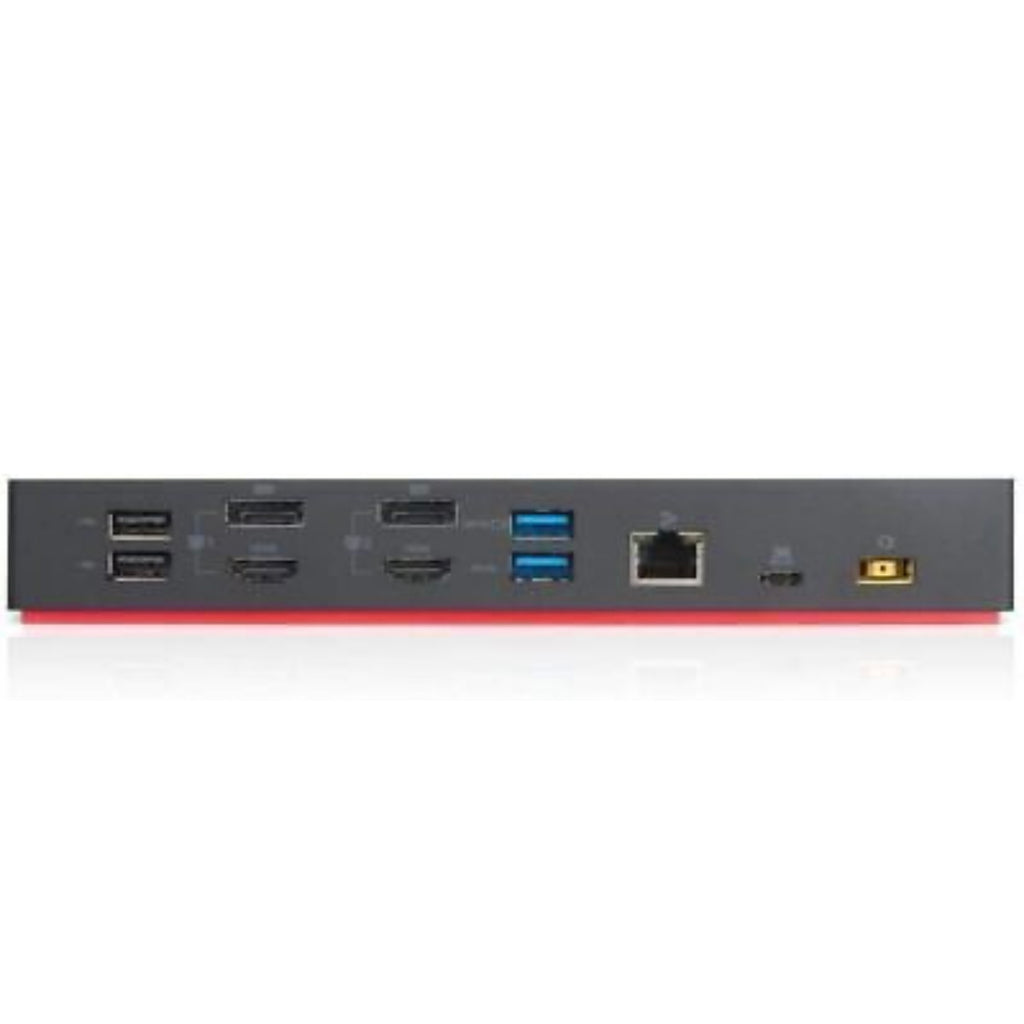

| USB Ports |
1 x USB-C (Data, 5V/3A power); 3 x USB 3.1 Gen2 (10 Gbps, 1 always-on); 2 x USB 2.0 |
| Video Ports |
2 x DisplayPort 1.2; 2 x HDMI |
| Package Type |
Brown box |
| Warranty Period |
3 Years |
| Maximum Operating Temperature |
35 degrees Celsius (95 degrees Fahrenheit) |
| Minimum Operating Temperature |
0 degrees Celsius (32 degrees Fahrenheit) |
| Driver Needed |
Preloaded in select ThinkPad laptops |
| Input Power |
135 W |
| Power Button |
Yes |
| Power Delivery |
Yes |
| Shipment Group |

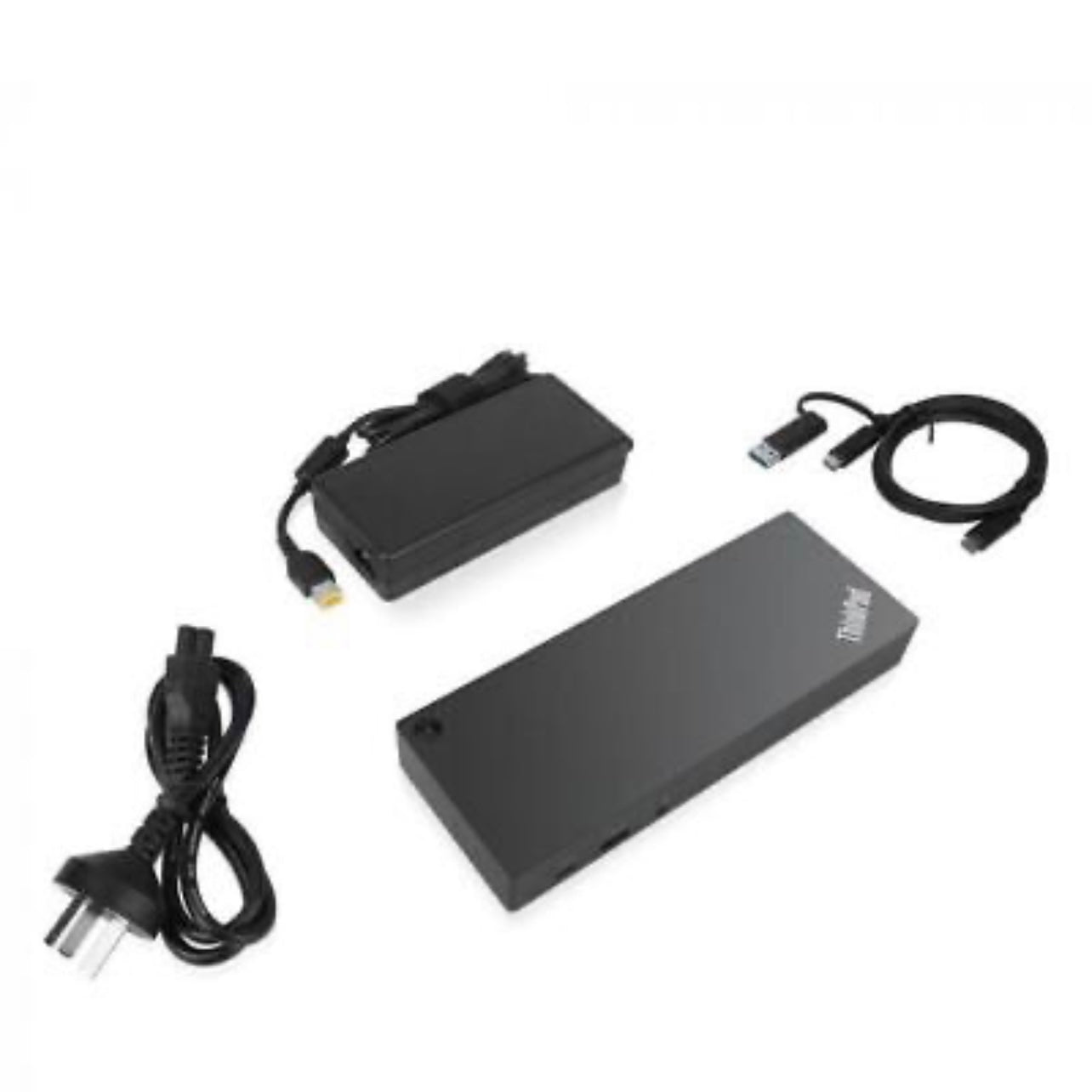

ThinkPad Hybrid USB-C with USB-A Dock;ThinkPad Slim-tip 135 W AC power adapter;1m USB-C Cable with USB-A Adapter;Power cord;Product information, safety and warranty poster |
| Compatibility |
E580, E480, E470, L580, L480, L470, L380, L380 Yoga, Lenovo Tablet 10, Miix 520-12IKB, T580, T570, T480, T480s, T470, T470s, T460, ThinkPad 25, X1 Carbon Gen 6, X1 Carbon Gen 5, X1 Yoga Gen 3, X1 Yoga Gen 2, X1 Tablet Gen 3, X1 Tablet Gen 2, 13 Gen 3 Windows, X280, X270, X260 |
|
